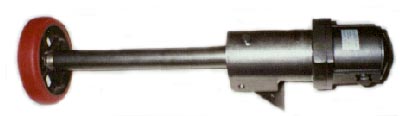

MOTION SWITCH(DBSS-40-PS) |
|
 |
| -. Able precision set up of movement speed due to digital switch control system. -. Achieved by high precision, high action due to internal micro computer. -. Enable high measuring range and working speed range is 1~9999RPM -. Suitable speed checker or speed gauge every revolution machines. -. Easy for control circuit design due to internal delay timer. -. wheel type speed switch. |
 |
| -. TYPE : WHEEL& DISPLAY -. CONTACT CAPACITY :10A 120VAC. 10A 30VDC -. PROTECTION :EXPLOSION PROOF(NEMA 9F) -. NUMBER OF CONTACTS : SPDT -. TIME DELAY :0 -~30SEC. ACCUARY:0.001% -. POWER : AC 110V/220V 60Hz -. CABLE ENTRY : PF 3/4" 2EA -. WEIGHT: 13KG |
 |
| Explosion proof test of Korea Industrial Safety Corporation passed PROTECTION: EXPLOSION PROOF NEMA 9 F |
 |
| TEL:82- 51-628-9626 FAX: 82-51-628-9628 |
| |||||||||||||||||||||||||
