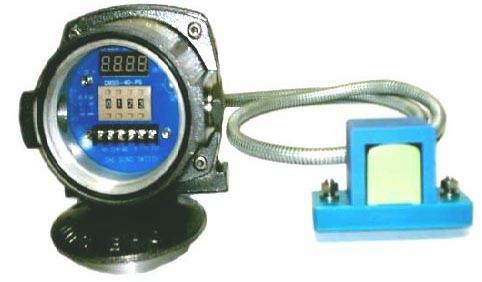

Speed switch (DBSS-40EX-PS) |
|
 |
| When conveyor belts`speed slow down due to overload evaporation, slip, and accident this SPEED SWITCH' check the speed of conveyor belt or other machines. Protect conveyor belt and other machines in advance. During normal condition the relay indicate. "ON", and the relay indicate "OFF" when the speed slow down. Relay moved as emergency stop or alarm signal. -. Able precision set up of movement speed due to digital switch control system. -. Achieved by high precision, high action due to internal micro computer. -. Enable high measuring range and working speed range is 1~9999RPM -. Suitable speed checker or speed gauge every revolution machines. -. Easy for control circuit design due to internal delay timer. |
 |
| -. CONTACT CAPACITY :AC 250V 10A -. PROTECTION : NEMA 9F -. WATER PROOF: IP 65 -. NUMBER OF CONTACTS : SPDT -. TIME DELAY :0 -~30SEC -. POWER : AC 110V/220V 60Hz -. PROXIMITY SWITCH RANGE : 5~20mm -. CABLE ENTRY : PF 3/4"X2EA -. CONTROL SPEED: 1-9999 RPM -. DISPLAY WITH SENSOR -.WEIGHT: 3.4KG |
 |
| Explosion proof test of Korea Industrial Safety Corporation passed Explosion proof: nema 9F |
 |
