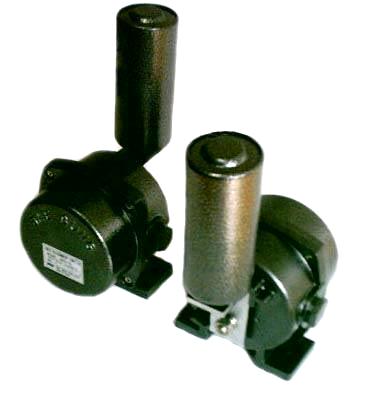

Belt sway Switch (DBSS-20) |
|
 |
| This belt alignment switch detector finds out if conveyor belt is off-center or moving erratically and sounds emergency alarm or stop signal. Place on both sides of conveyor belt from abrasion and check for transportation of unusual object,in advance. 1. One body of aluminum diecasting, has high machanical intensity and light weight. 2. switch and cam moved 2-step of tension by double spring, high absorption of machanical vibration and impact. 3. Designed water-proof(IP65) and dust-proof. shaft, bolt and nut made of stainless steel(SUS 304). 4. Suitable anticorrosion material like conveyor belt system and outside plant system, etc. |
 |
| -. CONTACT CAPACITY : 15A 125V/250V AC. 15A 14V DC. -. PROTECTION : IP65 -. NUMBER OF CONTACTS : SPDT x 2EA -. IN CLINATION ANGLE OF OPERATING ANGLE : 25 & 35 DEGREE -. CABLE ENTRY : PF 3/4" x 2EA WITH PLUG -. WEIGHT: 3.4KG -. COLOR : HAMMERTION FE411 |
 |
| IP65, shell protective ability test of the Korea Institute of Machinery and Materials passed |
 |
| DBSS-20. |
 |
| Indonesia, Malaysia,japan. USA..etc |
 |
